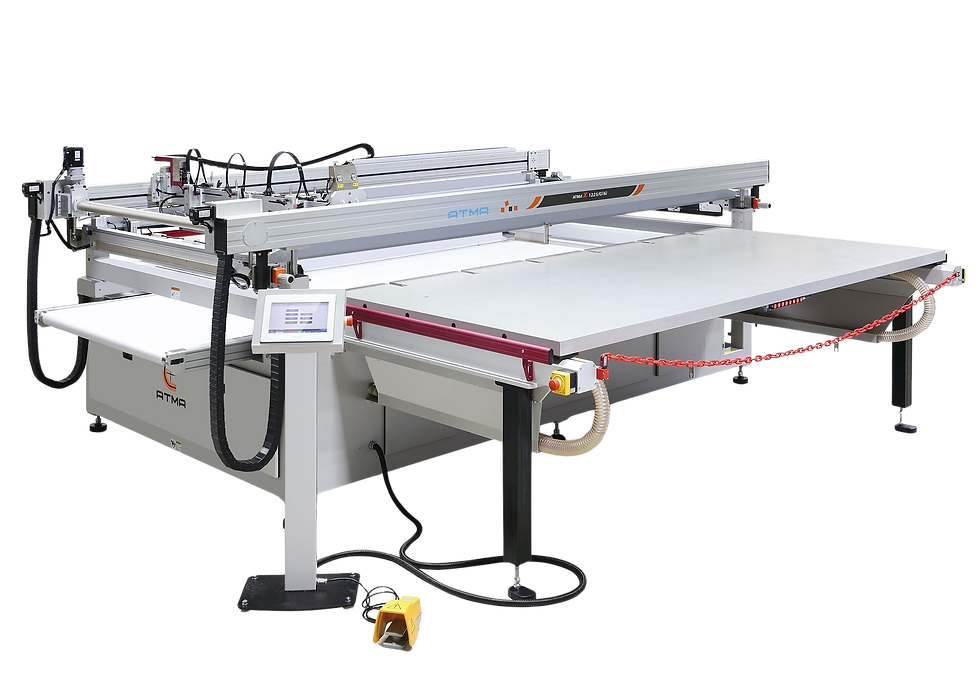

ATMAX 1225/G(6)

JUMBO FOUR-POST SCREEN PRINTER WITH GRIPPER TAKE-OFF

Suitable for large-size soft/hard material screen printing operations, such as large posters, bus advertisements, car wraps, ski board transfer paper, vending machine advertisements, signage, etc.

Features

Advanced Machine Architecture
Engineered for demanding industrial production with consistent, repeatable performance
Precision Four-Post Lifting System
Ensures rigid vertical control and uniform print pressure across the full print area
High-Precision Linear Motion System
Delivers smooth, vibration-free operation for stable and accurate printing
Pneumatic Squeegee Pressure Compensation
Maintains consistent ink transfer and print quality across varying substrate thicknesses
(Squeegee pressure directly impacts ink deposit and print quality)
Infinitely Variable Squeegee & Flood Speeds
Allows full control of ink laydown for fine detail or high-build applications
Micrometric X–Y Screen Registration with Pneumatic Locking

Enables precise, repeatable alignment for multi-layer printing
Programmable Vacuum and Blow-Back System
Improves substrate hold-down and release, reducing handling errors and scrap
Fast Front-Side Screen Loading
Simplifies screen changes and reduces setup time
Precision Print Head with Pneumatic Lift
Provides controlled movement for cleaning, setup, and process stability
Adjustable Squeegee and Flood Coater Angles (Scale Indicated)
Optimizes ink shear and deposit consistency across different ink systems
Infinitely Adjustable Print Stroke Length
Matches stroke to image size, improving efficiency and throughput
Centralized Substrate Thickness Adjustment
Reduces setup time and minimizes operator error
Automatic Screen Lift with Micrometric Control
Maintains consistent snap-off and print quality
Programmable Gripper System
Automatically adapts to varying material thicknesses for reliable sheet handling
Individually Switchable Lay Stops
Provides flexibility for different substrate sizes and formats
Bidirectional Material Take-Off (Left or Right)
Allows seamless integration into existing production layouts
Infinitely Adjustable Delivery Belt Speed
Ensures stable material transport and synchronized production flow
Ergonomic PLC-Controlled Interface with LED Display
Simplifies operation, improves visibility, and reduces training time

SPECIFICATION	ATMAX 1225/G(6) Metric	ATMAX 1225/G(6) US Standard Units
MAX. PRINT AREA (D × W)	1210 × 2510 mm	47.6" × 98.8"
MIN. PRINT AREA (D × W)	300 × 700 mm	11.8" × 27.6"
TABLE SIZE (D × W)	1500 × 3000 mm	59.1" × 118.1"
VACUUM AREA (D × W)	1200 × 2500 mm	47.2" × 98.4"
MAX. FRAME SIZE (O/D)	1750 × 3100 mm	68.9" × 122.0"
MIN. FRAME SIZE (O/D)	1200 × 1900 mm	47.2" × 74.8"
FRAME HEIGHT	30 ~ 60 mm	1.18" ~ 2.36"
SUBSTRATE THICKNESS	0.1 ~ 6.0 mm	0.004" ~ 0.236"
SCREEN-UP CLEARANCE	50 mm (standby), 400 mm (cleaning)	2.0" (standby), 15.7" (cleaning)
PRINTING SPEED	20 ~ 1000 mm/sec	0.8" ~ 39.4"/sec
PRODUCTION CAPACITY	260 ~ 360 P/H	260 ~ 360 P/H
SCREEN X/Y ADJUSTMENT	±10 / ±10 mm	±0.39" / ±0.39"
SCREEN Z ADJUSTMENT	±2 mm	±0.08"
PEEL-OFF HEIGHT	0 ~ 50 mm	0 ~ 2.0"
SQUEEGEE PRESSURE	3 ~ 96 kg	6.6 ~ 212 lb
FLOOD COATER PRESSURE	3 ~ 62 kg	6.6 ~ 136.7 lb
VACUUM HOLE SIZE / PITCH	Ø1.5 mm / 25 × 25 mm	Ø0.06" / 1" × 1"
TABLE HEIGHT	975 + 50 mm	38.4" + 2.0"
GRIPPER CAPACITY	0.1 ~ 6.0 mm	0.004" ~ 0.236"
CONVEYOR BELT WIDTH	1300 mm	51.2"
CONVEYOR SPEED	50 ~ 600 mm	2.0" ~ 23.6"
POWER SOURCE	3 Phase, 220/380V, 50/60Hz	3 Phase, 220/380V, 50/60Hz
POWER CONSUMPTION	11.2 kW	11.2 kW
AIR PRESSURE	5 ~ 7 kg/cm²	71 ~ 100 psi
AIR CONSUMPTION	25.7 L/cycle	6.8 gal/cycle
MACHINE DIMENSIONS (W × D × H)	4250 × 3730 × 1550 mm	167.3" × 146.9" × 61.0"
MACHINE WEIGHT	~2930 kg	~6,460 lb

Jumbo Format, Industrial CapabilityLarge-format printing up to ~1210 × 2510 mm (~4' × 8'+), designed for high-volume production on both rigid and flexible substrates

Precision Four-Post Lifting SystemEncoder-controlled vertical movement ensures consistent print pressure and repeatable registration across the full print area

Servo-Driven Print PerformanceDigitally controlled print head delivers stable motion and repeatable ink deposition, supporting high-speed production up to 1000 mm/sec

Advanced Screen Control & RegistrationMicrometric X/Y/Z adjustments combined with servo-controlled peel-off improve multi-layer accuracy and reduce mesh distortion

High-Accuracy Sliding Table SystemEncoder-guided table positioning (±0.01 mm) ensures precise substrate alignment and consistent repeatability in production

Integrated Vacuum Table with Air AssistVacuum hold-down stabilizes substrates during printing, while air blow assists loading and unloading for improved handling efficiency

Automated Gripper Take-Off SystemHandles substrates from 0.1–6.0 mm and transfers printed sheets directly to downstream processes, increasing throughput and reducing manual handling

Digital PLC Control with Recipe ManagementStores up to 100 job settings for fast changeovers and standardized production workflows

Flexible Print Cycle ProgrammingAdjustable speeds, delays, and multi-pass cycles allow optimization for different ink systems and layer requirements

Robust Industrial ConstructionHeavy-duty welded frame and precision-machined components provide long-term stability and vibration resistance

Fast Setup & Operator EfficiencyFront-side screen loading, air-locking system, and intuitive HMI interface reduce setup time and simplify operation

Comprehensive Safety SystemIntegrated safety features including E-stop, safety bars, and pressure monitoring ensure safe operation in production environments
